WIDOPAN PRODUCTS ARE AVAILABLE FOR USE BY FULLY TRAINED & APPROVED INSTALLERS.
This is a unique is a 2 component decorative surfacing system, consisting of natural marble stones and a transparent 1K PU binder.
Once laid, this exclusive product creates a seamless and porous surface that allows water to pass directly through.
Alternatively, the surface can be completely sealed if required.
Suitable for indoor and outdoor use, it can be used for a number of applications.
Ideal for balconies and terraces, to wet rooms, staircases and even work surfaces and outdoor kitchens.
Title | Extension | Size |
---|---|---|
WIDOPAN-Stone Carpet Product Data Sheet | 477.48 KB | |
WIDOPAN-Stone Carpet Safety Data Sheet (Binder) | 220.46 KB | |
WIDOPAN-Stone Carpet Safety Data Sheet (Vertical Binder) | 209.69 KB |
WIDOCRYL-Stone carpet is a jointless and open pored floor covering suitable for outdoor use. The stone carpet consists of natural marble gravel and a binding agent. The open pored structure reduces sounds and the round marble gravel make walking on the stone carpet pleasant and secure.
Various binding agents can be used to produce the stone carpet. These vary for horizontal and vertical layers. The classic binding agent is based on PURResin however, solvent-free alternatives are also available.
The stone carpet may be applied on all surfaces made from WIDOPAN liquid waterproofing but may also be used on other materials. Before starting the application, tests should be made to assure the compatibility with the surface. The surface should have a slope of at least 2% to ensure that the water drains off.
WIDOPAN-Stone carpet is certified for anti- slip (R10).
Before starting the application, we recommend to install angle brackets which should be fixed with cartridge adhesive or hot glue (8mm for horizontal layers, 6mm for vertical layers). They serve vertical boundaries but may also be used as part of the visual design.
The WIDOPAN-stone carpet consists of natural marble gravel and a binding agent which are mixed together with an appropriate stirrer in a bucket until all the gravel is covered in binding agent. The finished mixture is then spread on the surface using a trowel and evened until a smooth surface is achieved. To avoid the gravel from sticking to the trowel, it’s recommended to regularly cover the trowel with a smoothening agent e.g. WIDOPAN-STGM.
Further details, especially regarding hazard statements, security advices and measures in the event of fire can be found in the safety data sheet under sections 2, 4, 5, 6, 7 and 8.

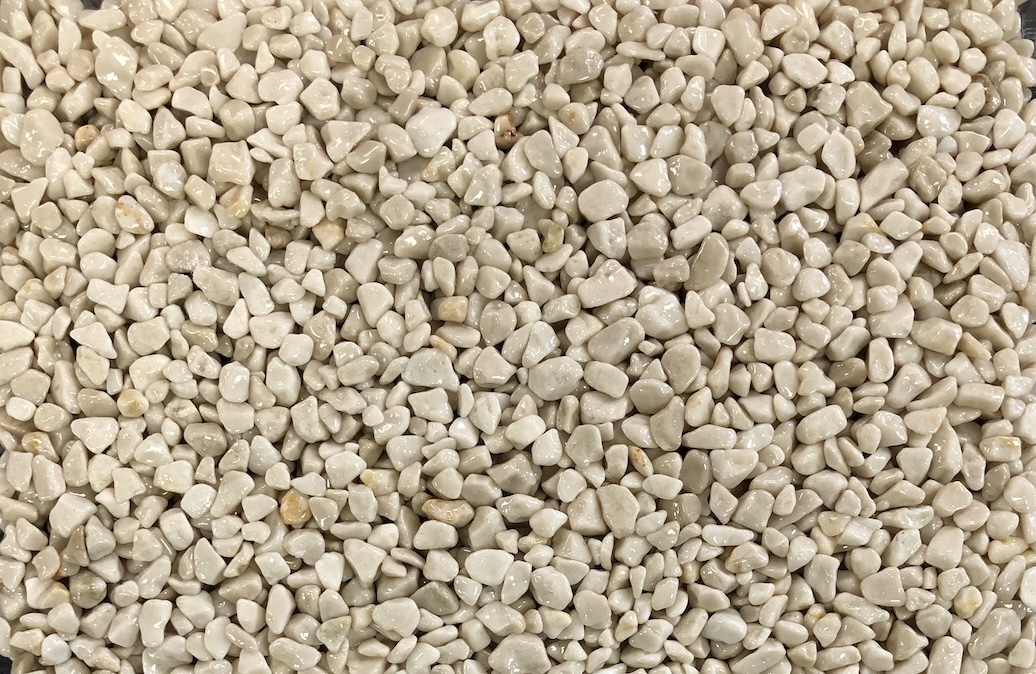

Marble (grain size 2 – 4 mm) Binding agent: one-component PUR-resin
(also available solvent-free)
(Please find informaton regarding the binding agents on page 2)
Horizontal layers: 16 kg/m² finished mixture for 8 mm layers. 14,8 kg/m² marble and 1,2 kg/m² binding agent.
For the finished mixture, one tin of binding agent for horizontal layers (2,0 kg) is mixed with one bag of marble 25,0 kg)
Vertical layers: 12 kg/m² finished mixture for 6 mm layers. 10,9 kg/m² marble and 1,1 kg/m² binding agent.
For the finished mixture, half a tin of binding agent for vertical layers (2,0 kg) is mixed with on bag of marble (25,0 kg). The vertical surface is primed with 0,2 kg/m² of the binding agent before applying the marble-mitxure.
Marble gravel: 25 kg bag
Binding agent: view page 2
Curing ( at + 20°C and 50% rel. humidity)
12 to 24 hours (depending on the surrounding temperature/humidity and the type of binding agent used.
Grey, dark grey, pink, brown, yellow, beige (special colours are available, price on request)
WIDOPAN-Cleaner Storage of the Marble gravel If packaging is kept closed and stored at constant temperature the marble gravel can be stored unlimited.
If container is kept closed and strorage temperature held constantly between +15°C and +20°C the binding agent may be used for up to 6 months
